Fused Silica Spiral Phase Plates, Mode Converters & Circular Pi Plates

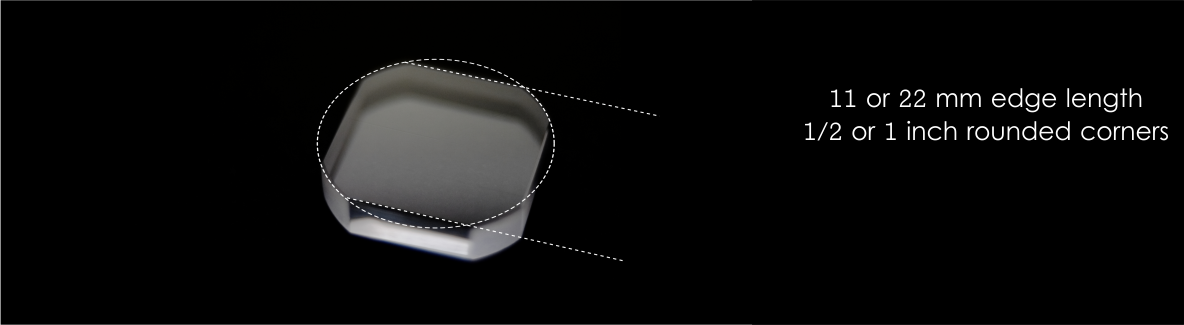

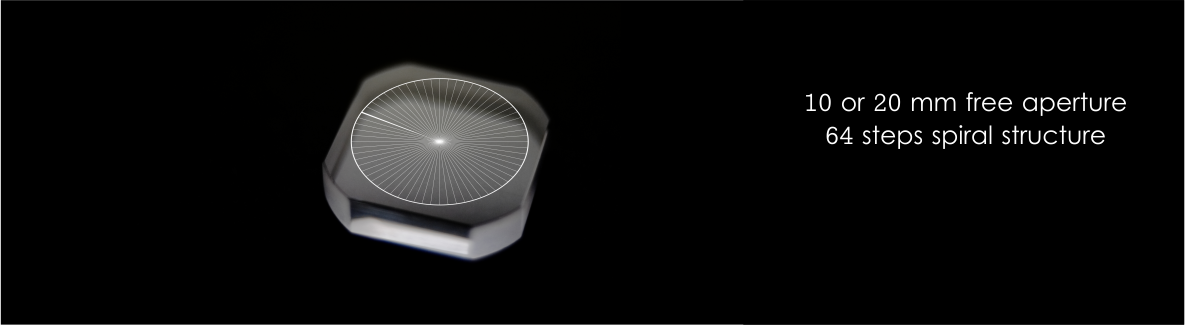

Spiral Phase Plates (SPPs) are 64-level Diffractive Optical Elements (DOEs) etched in fused silica that twist a plane Gaussian beam into an optical vortex with a dark central intensity zero (doughnut beam). Supporting wavelengths from 193 nm to 3.5 µm and topological charges 1–32, they power STED and MINFLUX microscopy, optical tweezers, OAM telecommunications, quantum optics, and precision laser machining.
Explore Spiral Phase Plates →
Hermite-Gaussian Mode Converters selectively shift the wavefront phase by π across linear etched steps to transition a fundamental TEM00 Gaussian beam into higher-order modes (TEM01 through TEM016). Engineered for optical cavities, resonators, optical tweezers, atomic excitation, and precision laser material processing.
Explore Mode Converters →
Circular pi plates shift the phase of the central beam zone by π to turn a Gaussian focus into a 3D bottle beam (z-doughnut) with an intensity zero on the optical axis. Paired with a spiral phase plate for 3D STED microscopy and offered with four zone diameters (0.2, 1.0, 2.0, and 3.0 mm) per wavelength to match your beam directly.
Explore Circular Pi Plates →
Can’t find your exact wavelength, topological charge, zone diameter, substrate geometry, or AR coating in our standard catalog? We realize customer-specific fused silica phase plates tailored to your experimental or OEM system requirements.
Request Custom Optics →
Free Calculators
Optics Toolbox
Simulate vortex focal ring sizes, wavelength detuning efficiency, 64-level far-field & near-field Fresnel propagation, and angular π-plate modes before ordering.
Technical Support
FAQ & Optical Glossary
Quick answers on topological charges, 3D STED setups, zone diameter sizing (d ≈ 0.83 D), LIDT, AR coatings, polymer removal, and 16 core optical terms.
Peer-Reviewed Research
Selected Publications
Explore research papers and PhD theses in Nature, Science Advances, ACS Photonics, and Optica featuring Vortex Photonics optics.
